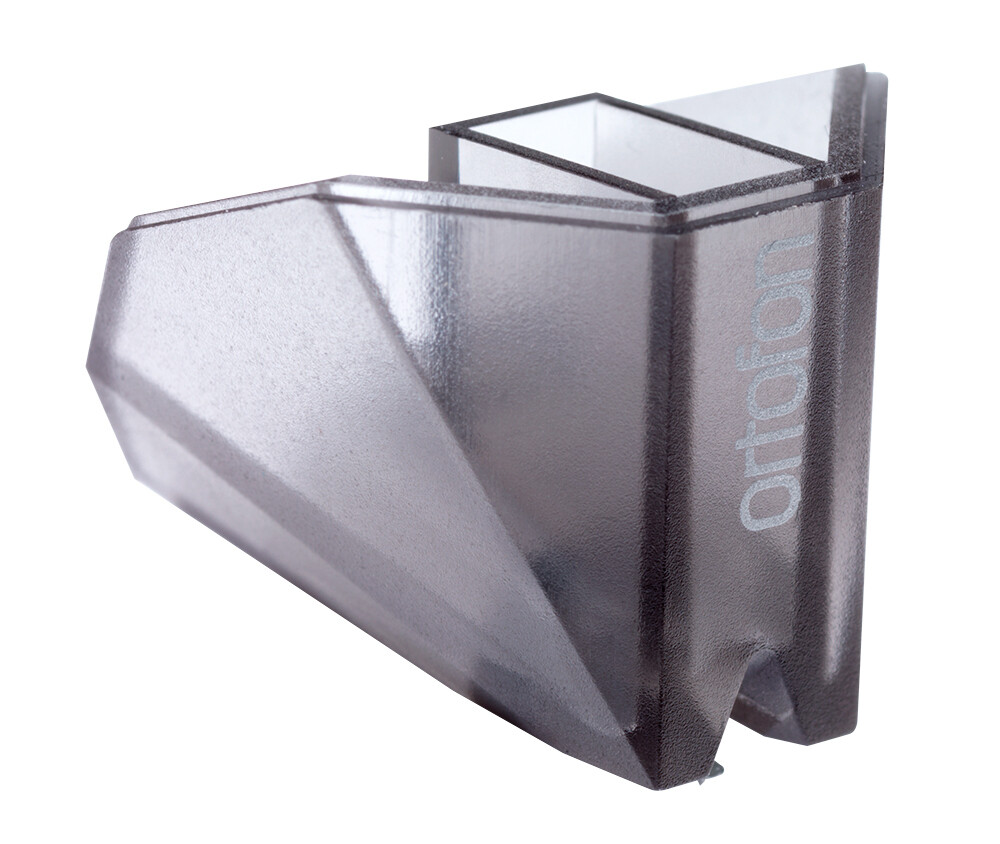

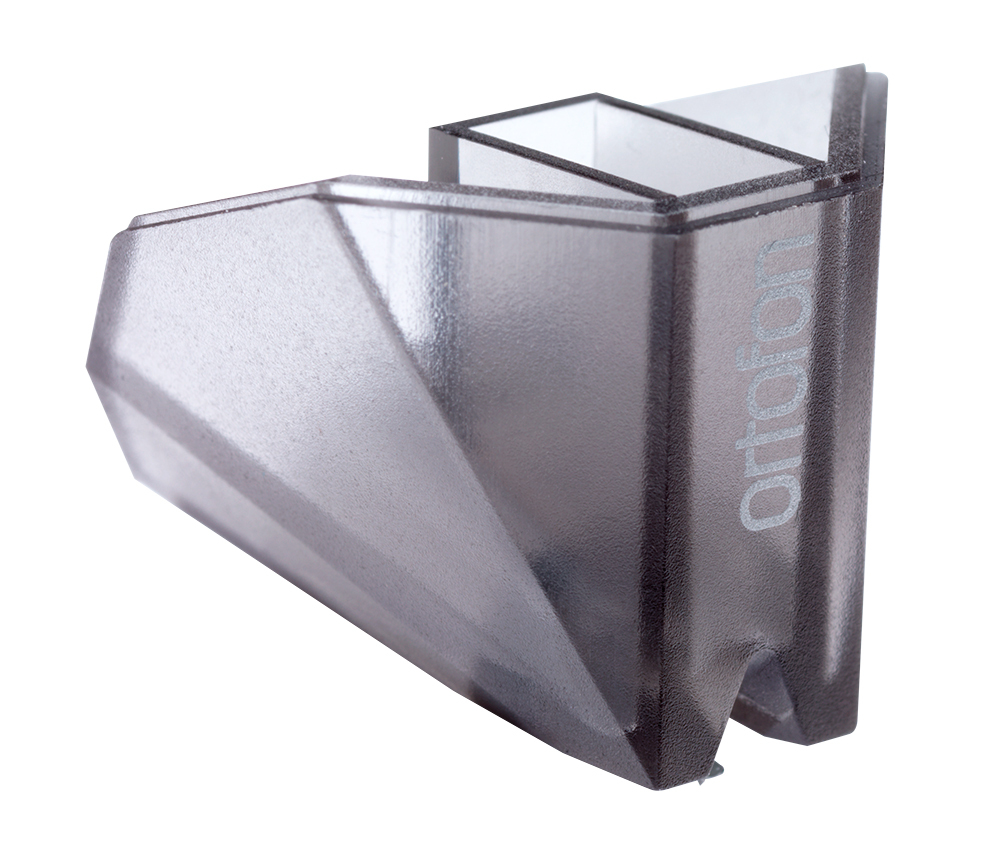

Ortofon Stylus 2M Silver vervangingsnaald voor 2M Silver, 2M Red en 2M Blue element

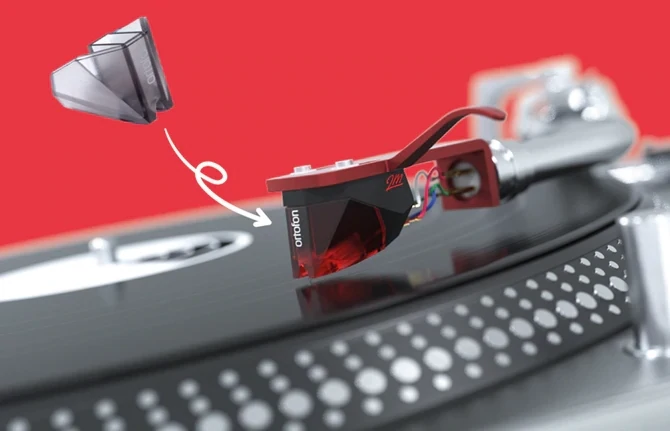

2M styli interchangeability

The 2M series styli are interchangeable within the following combinations: 1) 2M Red, 2M Blue, and 2M Silver, 2) 2M Bronze, 2M Black, and 2M Black LVB 250, 3) 2M Mono and 2M 78.

Special for 2M Red, 2M Blue, and 2M Silver phono cartridges: The 2M Silver will be an upgrade compared to 2M Red due to a special suspension and silver-plated copper wire material. The 2M Blue is an upgrade compared to both 2M Red and 2M Silver thanks to Nude Elliptical diamond which retrieves information from the groove with a higher accuracy.

Specificaties:

Frequency response - 20-20.000 Hz + 3 / - 1 dB.

Tracking ability at 315 Hz at recommended tracking force *) - 70 µm.

Compliance, dynamic, lateral - 20 µm/mN.

Stylus type - Elliptical.

Stylus tip radius - r/R 8/18 µm.

Equivalent stylus tip mass - 0.5 mg.

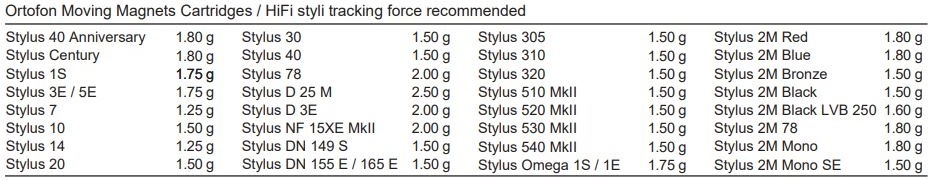

Tracking force range - 1.6-2.0 g (16-20 mN).

Tracking force, recommended - 1.8 g (18 mN).

Tracking angle - 20°. * = typical value.
