Ortofon precisie digitale weegschaal

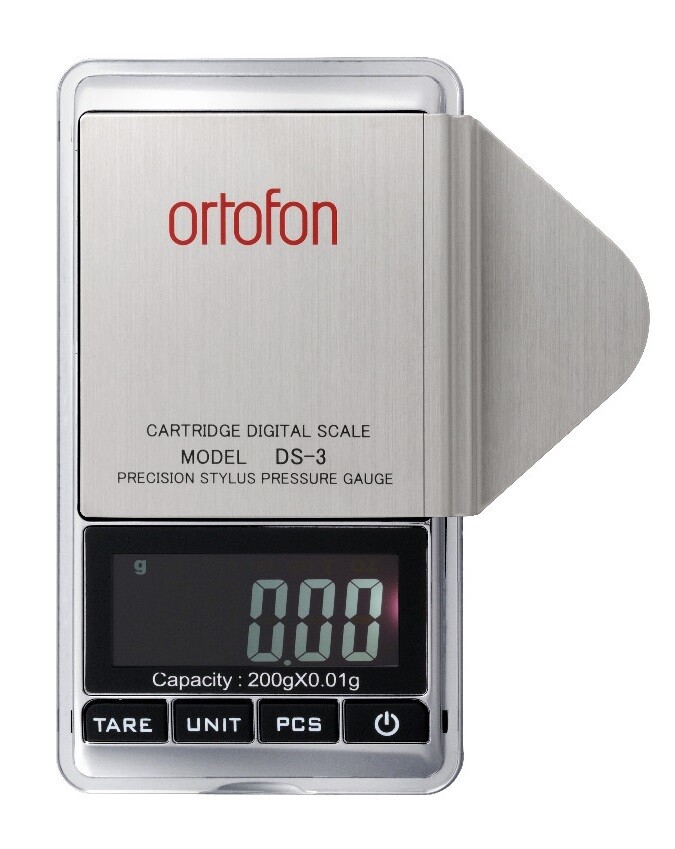

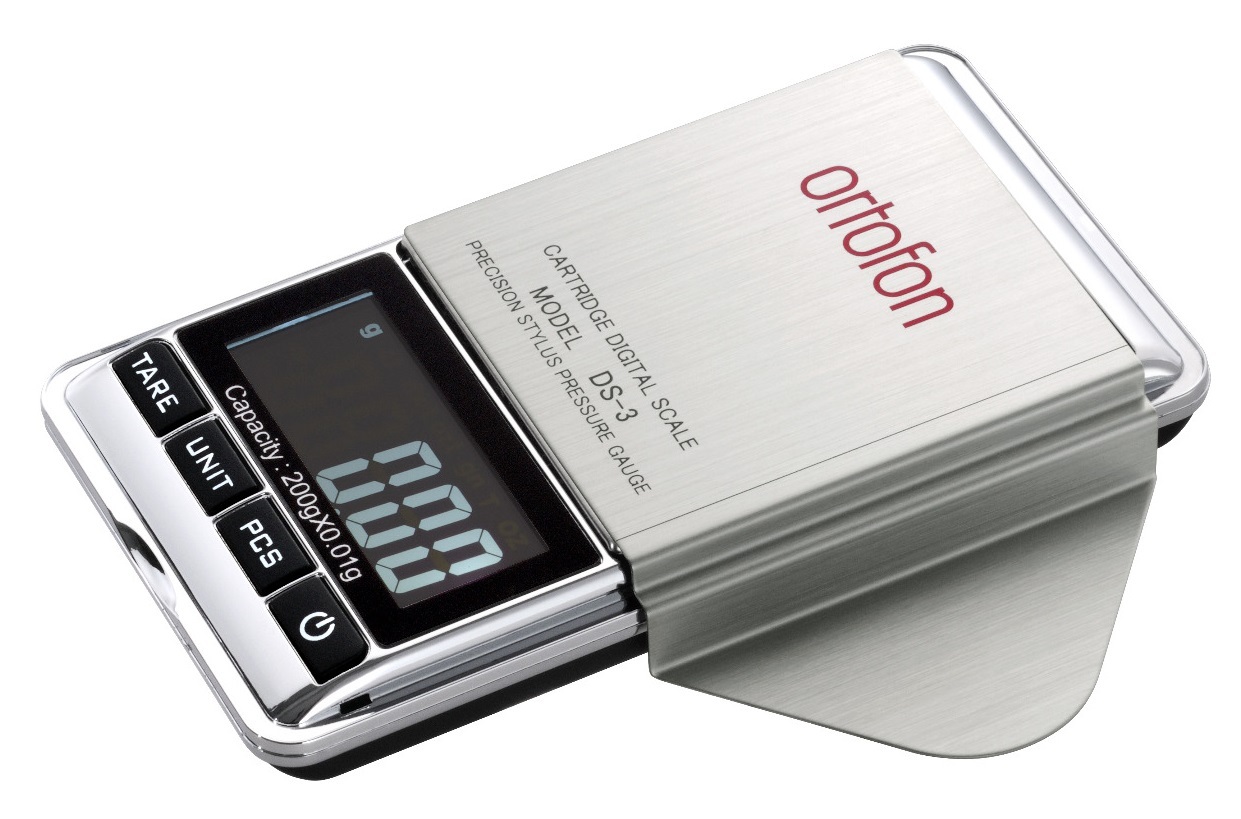

DS-3 is a new lightweight compact digital stylus pressure gauge model. The DS-3 is a miniature ultra precision non-magnetic instrument that tunes your tonearm to the highest possible degree. The DS-3 scale is factory pre-calibrated for high accuracy measurements with the tolerance of +/-0.01 g.

• Turn on the device by pressing ON button. The display will show 0000.

• Press the UNIT button to select the measurement unit. The default setting is gram/g.

• Place the stylus on the measurement plate on the right side of the device. Display will start blinking. It will stop blinking when the measurement is completed. The value displayed on the screen is the stylus pressure.

• The display screen will automatically dim to saving mode after 5 seconds of inactivity and turn off after 60 seconds of inactivity.

• When a battery runs out, a LO indicator will flash on the screen. Then replace both batteries.

• PCS button balances count by calculating the average weight of one piece-weight called a unit weight, then applying it to the total weight of what you are trying to count. Firstly, weigh one PC, then weigh the bundle, then push the PCS button and on the display you’ll get a number of PCS.

Sensitivity - 0.01g

Operational weight range - 0.1g to 200g

Battery - 2 × AAA

Size - (L) 120mm × (W) 60mm × (H) 17mm

Weight - 70g

LCD screen with back lighting

Auto off function

Protect the device against high temperatures, dust and humidity

Carefully lower the measurement object on the measurement plate

Operating temperature range +10⁰ - +30⁰C

Do not place objects weighting more than 200 g on the measurement plate

Do not place the device on an uneven surface, it may result in not accurate measurements
